Perforation Patterns

Acoustic Design Panel 3,5/9Q
Panel thickness: 12.5 mm
Mass per unit area: varies
Perforated area: varies
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption / test setup 200 mm
--> Data sheet sound absorption / test setup 400 mm
--> Data sheet sound absorption Design board
Note: Only available for ceiling tiles and block perforations.

Acoustic Design Panel 4/14/10 Oval
Panel thickness: 12.5 mm
Mass per unit area: varies
Perforated area: varies
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Note: Only available for ceiling tiles and block perforations.

Acoustic Design Panel 5/82/15,4SL
Panel thickness: 12.5 mm
Mass per unit area: varies
Perforated area: varies
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption ceiling tile / 16F
--> Data sheet sound absorption ADP / 4F
--> Data sheet sound absorption ADP / 8F
--> Data sheet sound absorption ADP / 8/16F
Note: Only available for ceiling tiles and block perforations.
Acoustic Design Panel 6/15R
Panel thickness: 12.5 mm
Mass per unit area: 9.10 kg/m2
Perforated area: 8.7 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Note: Only available for ceiling tiles and block perforations
Acoustic Design Panel 6/18R
Panel thickness: 12.5 mm
Mass per unit area: 9.10 kg/m2
Perforated area: 8.7 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
--> Data sheet sound absorption / Design board
Acoustic Design Panel 8/18R
Panel thickness: 12.5 mm
Mass per unit area: 8.50 kg/m2
Perforated area: 15.5 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 10/23R
Panel thickness: 12.5 mm
Mass per unit area: 8.50 kg/m2
Perforated area: 14.8 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 12/25R
Panel thickness: 12.5 mm
Mass per unit area: 8.20 kg/m2
Perforated area: 18.1 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
--> Data sheet sound absorption / Design board
Acoustic Design Panel 15/30R
Panel thickness: 12.5 mm
Mass per unit area: 8.00 kg/m2
Perforated area: 19.6 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption

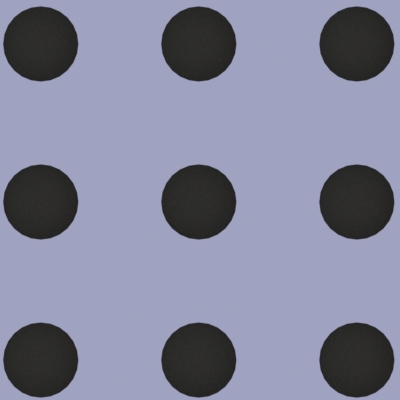

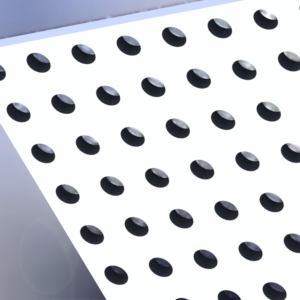

Acoustic Design Panel 20/42 R
Panel thickness: 12.5 mm
Mass per unit area: 8.20 kg/m2
Perforated area: 17.8 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 8/12/50R
Panel thickness: 12.5 mm
Mass per unit area: 8.70 kg/m2
Perforated area: 13.1 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 12/20/66R
Panel thickness: 12.5 mm
Mass per unit area: 8.00 kg/m2
Perforated area: 19.6 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 8/18Q
Panel thickness: 12.5 mm
Mass per unit area: 8.00 kg/m2
Perforated area: 19.8 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 12/25Q
Panel thickness: 12.5 mm
Mass per unit area: 7.70 kg/m2
Perforated area: 23.0 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
--> Data sheet sound absorption / Design board
Acoustic Design Panel 8/15/20R
Panel thickness: 12.5 mm
Mass per unit area: 9.10 kg/m2
Perforated area: 9.5 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 10/16/22R
Panel thickness: 12.5 mm
Mass per unit area: 8.70 kg/m2
Perforated area: 12.6 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
Acoustic Design Panel 12/20/35R
Panel thickness: 12.5 mm
Mass per unit area: 8.90 kg/m2
Perforated area: 11.0 %
Material class as per DIN 4102: A2, “non-inflammable”
Fire behaviour as per DIN EN 13501: A2-s1, d0
--> Data sheet sound absorption
