Overview of perforation patterns

Click here for sample book

Our acoustic design ceilings are formed using perforated gypsum plasterboards, serving as the foundation for exceptionally efficient ceiling solutions. Those boards are meticulously finished with various joint options, including the referred choice of Architects and contractors alike, VoglFuge. All can be tailored to  incorporate additional functionalities such as climate control elements or integrated lighting systems.

Offering a diverse range of standard perforation patterns, we also provide the flexibility to create bespoke perforation designs, uniquely customised to meet your specific requirements. We are committed to delivering acoustic design ceilings that seamlessly blend functionality and aesthetics for an unparalleled experience in architectural design.

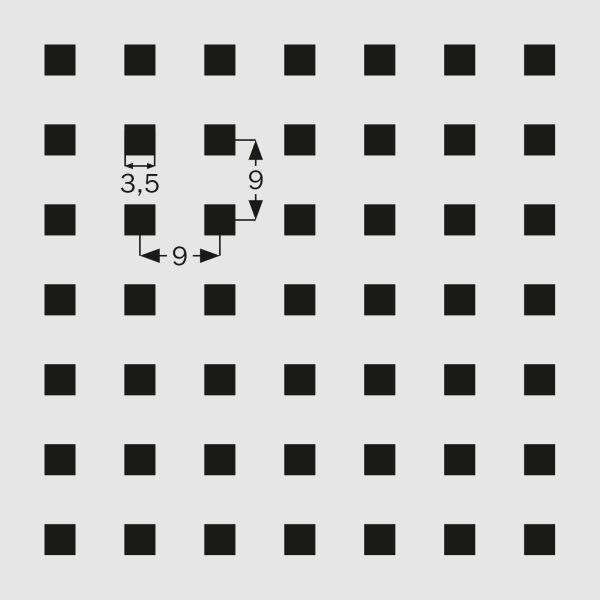

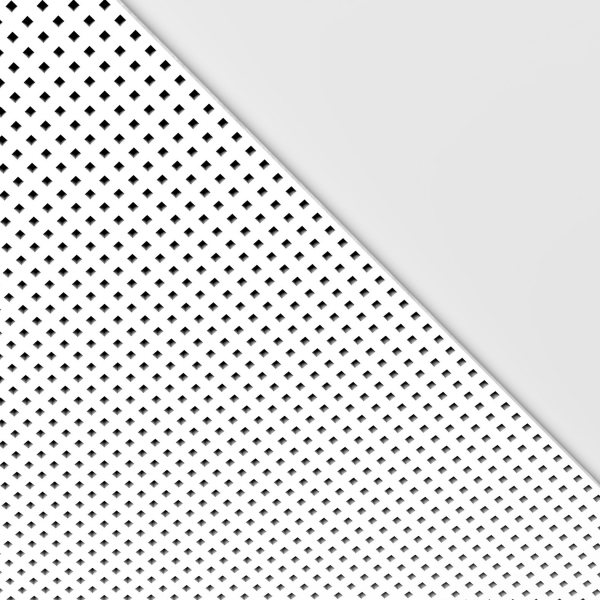

Acoustic design panel 3,5/9 Q

Acoustic design panel 3,5/9 Q

  • Panel thickness: 12,5 mm
  • Mass per unit area: varies
  • Perforated area: varies
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0
  • Note: Only available for tile ceilings and block perforations.

Data sheet on sound absorption / test setup 200 mm

DE
EN

Data sheet on sound absorption / test setup 400 mm

DE
EN

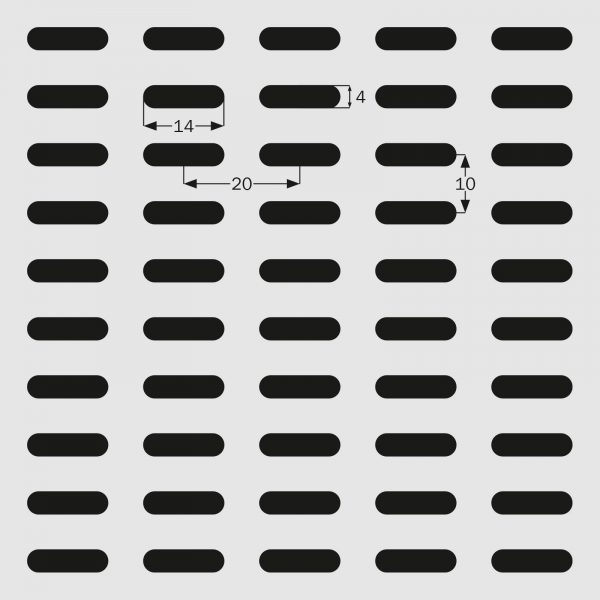

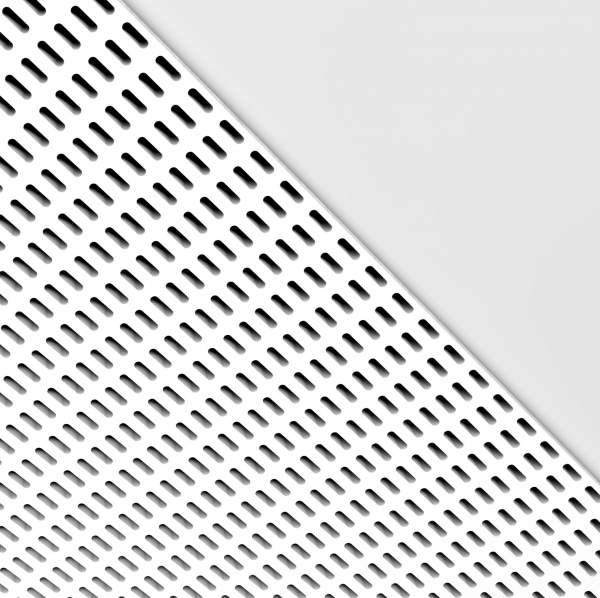

Acoustic design panel 4/14/10 Oval

Acoustic design panel 4/14/10 Oval

  • Panel thickness: 12,5 mm
  • Mass per unit area: varies
  • Perforated area: varies
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0
  • Note: Only available for tile ceilings and block perforations.

Data sheet on sound absorption

DE
EN
FR

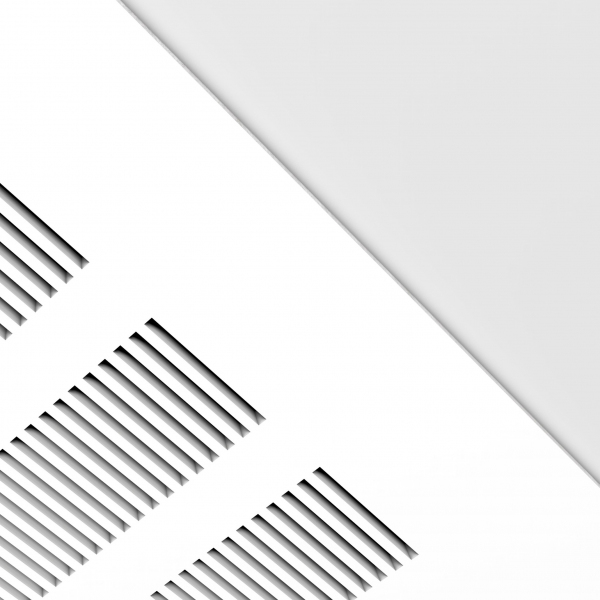

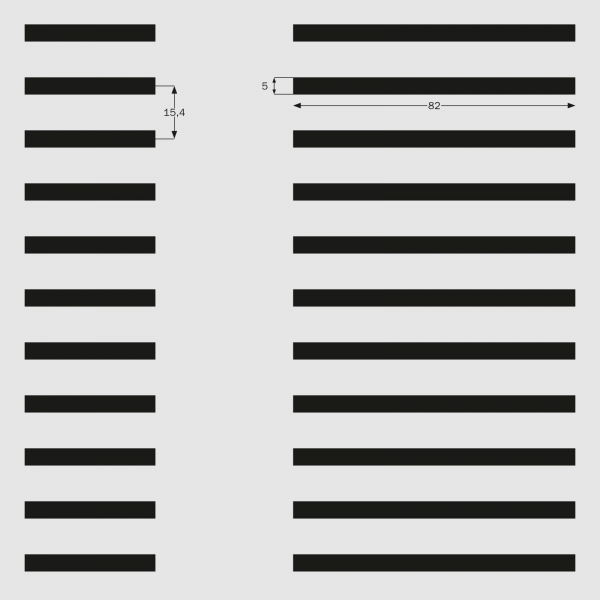

Acoustic design panel 5/82/15,4SL

Acoustic design panel 5/82/15,4SL

  • Panel thickness: 12,5 mm
  • Mass per unit area: varies
  • Perforated area: varies
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0
  • Note: Only available for tile ceilings and block perforations.

Data sheet on sound absorption Kassette / 16F

DE
EN

Data sheet on sound absorption ADP / 4F

DE
EN

Data sheet on sound absorption ADP / 8F

DE
EN

Data sheet on sound absorption ADP / 8/16F

DE
EN

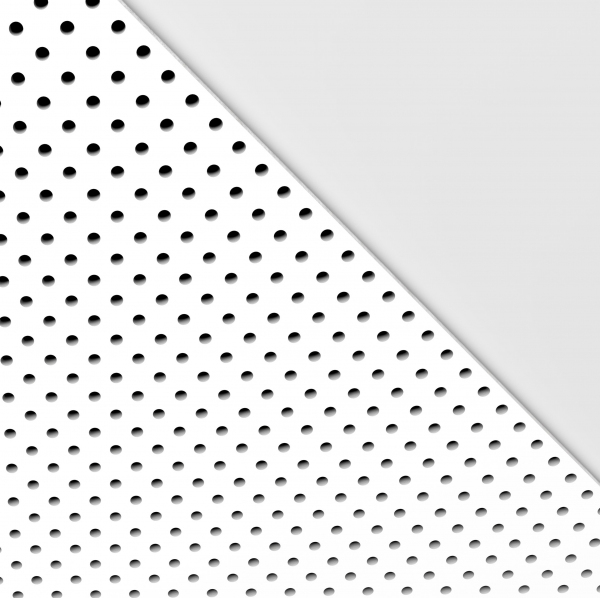

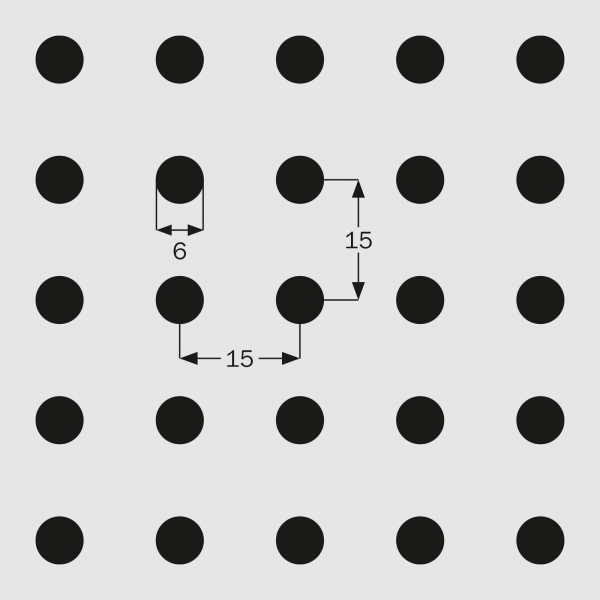

Acoustic design panel 6/15 R

Acoustic design panel 6/15 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: varies
  • Perforated area: varies
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0
  • Note: Only available for tile ceilings and block perforations.

Data sheet on sound absorption

DE
EN
FR

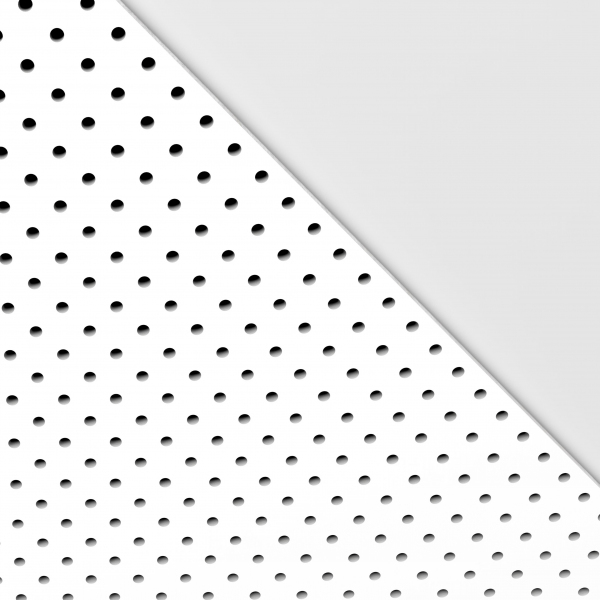

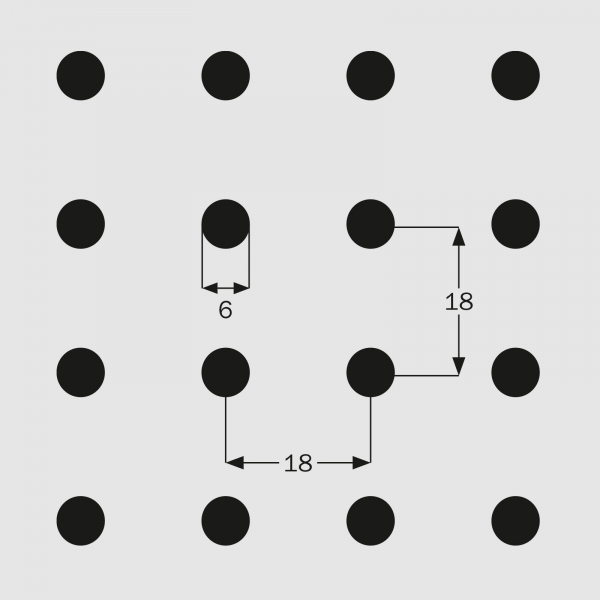

Acoustic design panel 6/18 R

Acoustic design panel 6/18 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 9,10 kg/m2
  • Perforated area: 8,7 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

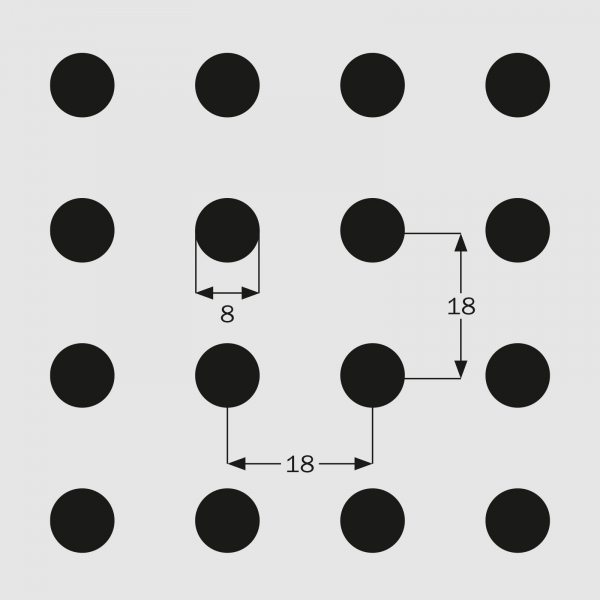

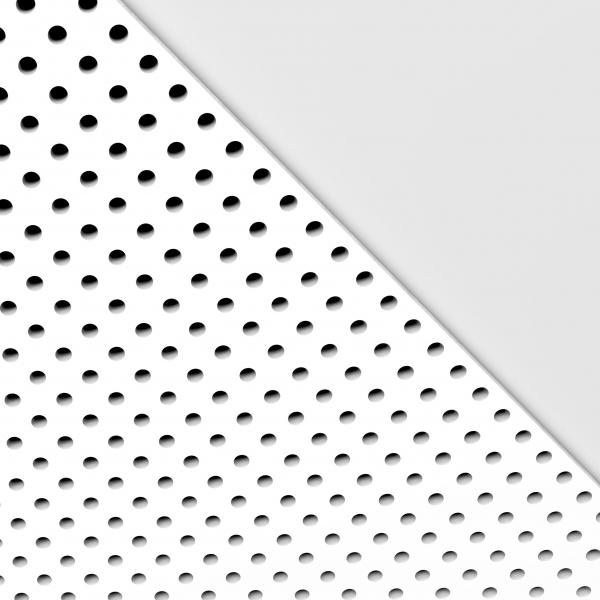

Acoustic design panel 8/18 R

Acoustic design panel 8/18 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,50 kg/m2
  • Perforated area: 15,5 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

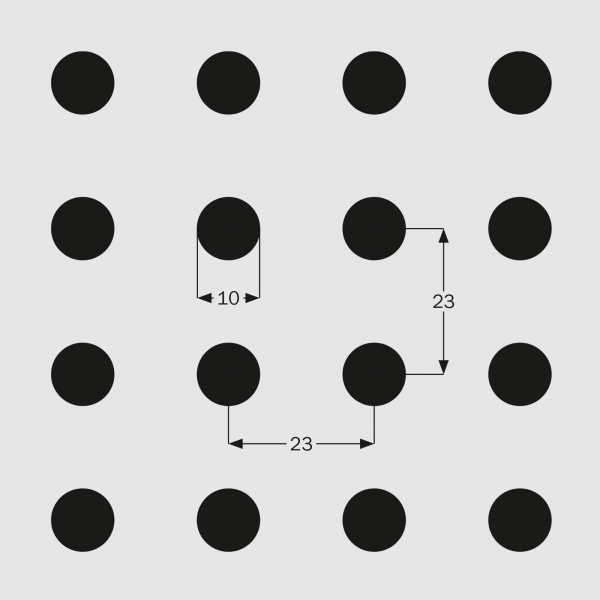

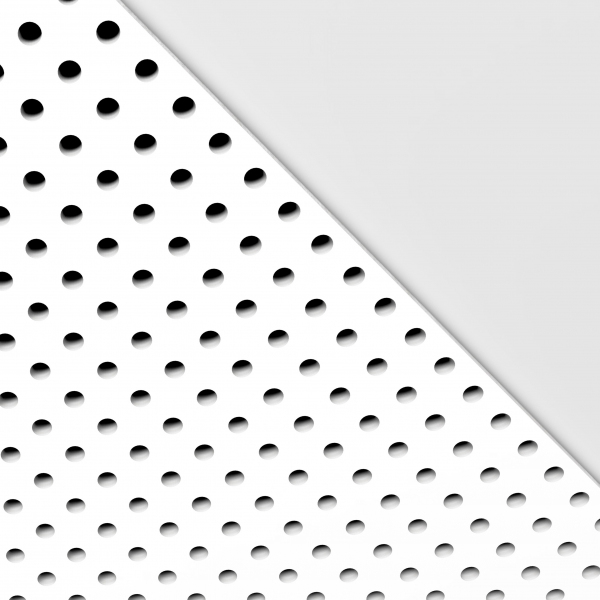

Acoustic design panel 10/23 R

Acoustic design panel 10/23 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,50 kg/m2
  • Perforated area: 14,8 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

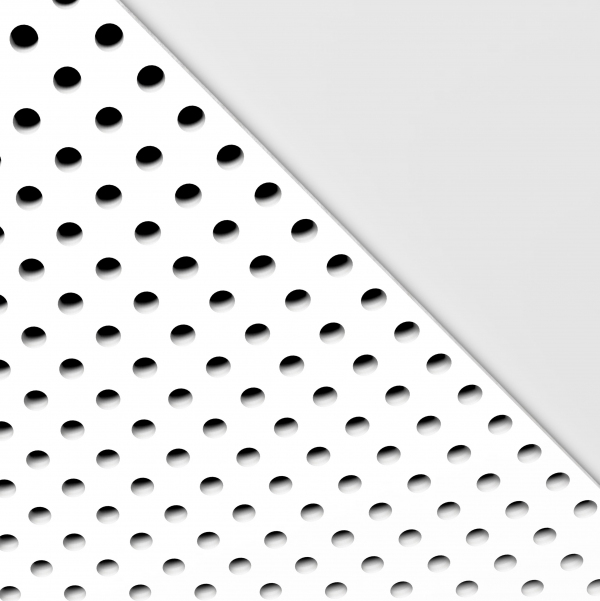

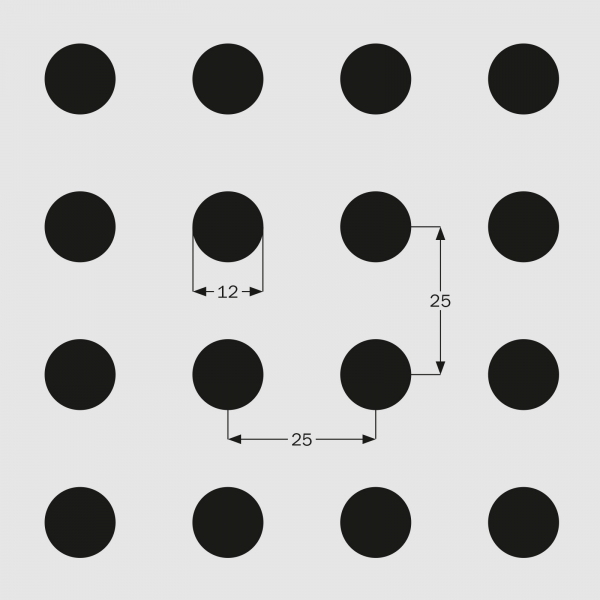

Acoustic design panel 12/25 R

Acoustic design panel 12/25 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,20 kg/m2
  • Perforated area: 18,1 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

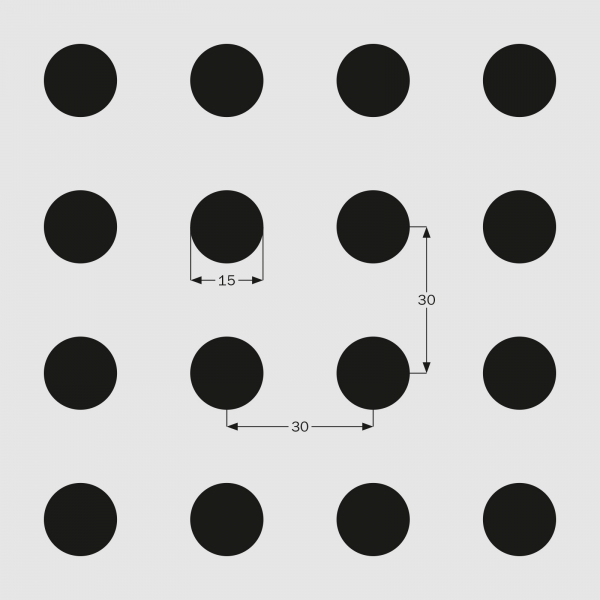

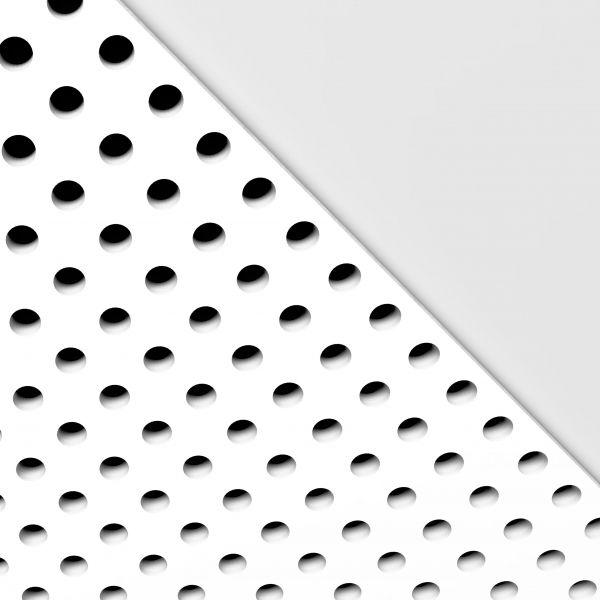

Acoustic design panel 15/30 R

Acoustic design panel 15/30 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,00 kg/m2
  • Perforated area: 19,6 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

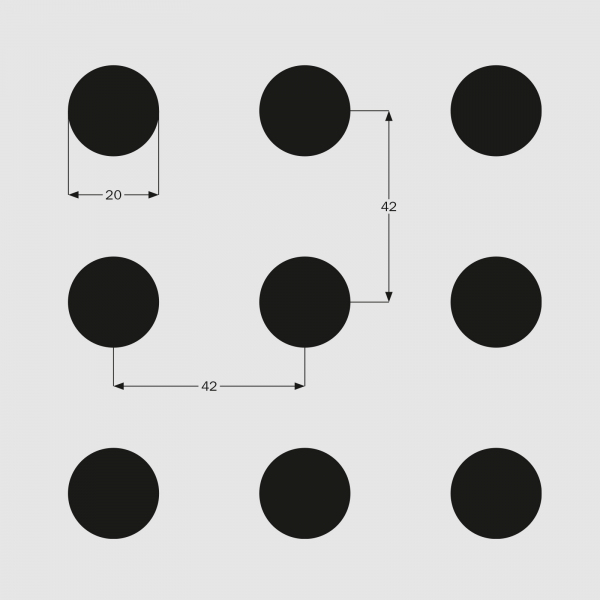

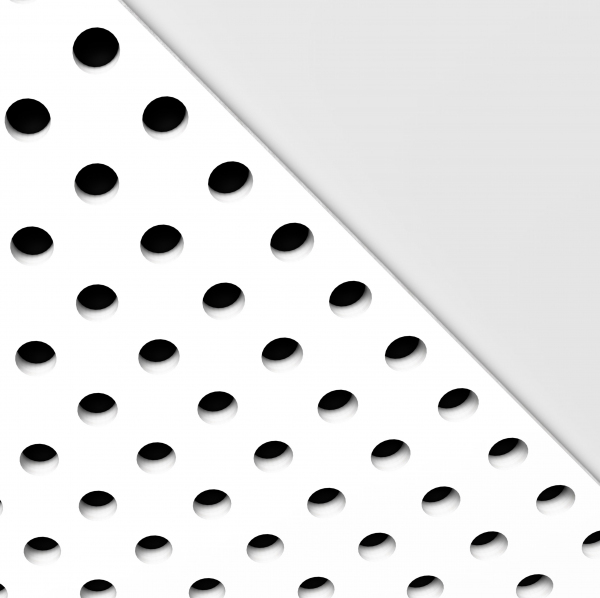

Acoustic design panel 20/42 R

Acoustic design panel 20/42 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,20 kg/m2
  • Perforated area: 17,8 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN

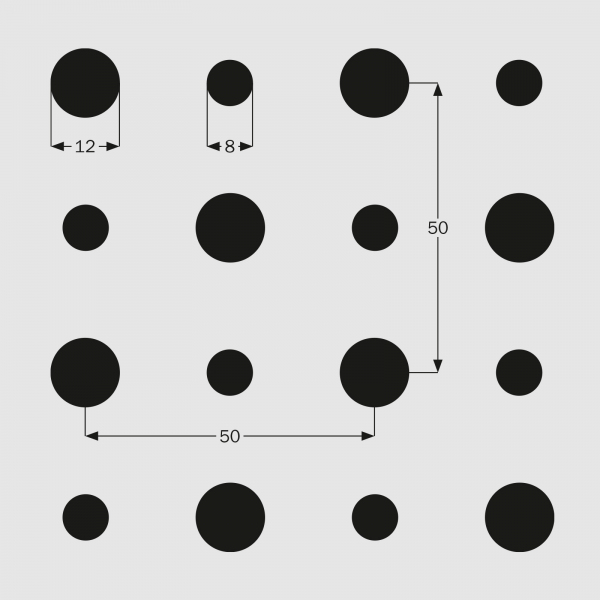

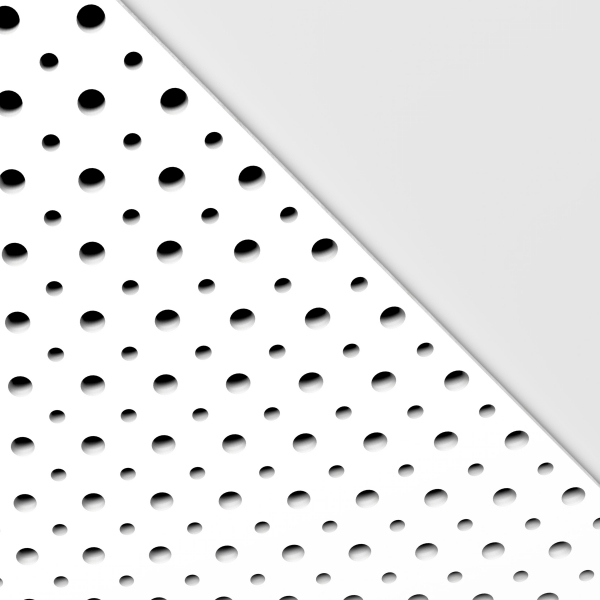

Acoustic design panel 8/12/50 R

Acoustic design panel 8/12/50 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,70 kg/m2
  • Perforated area: 13,1 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

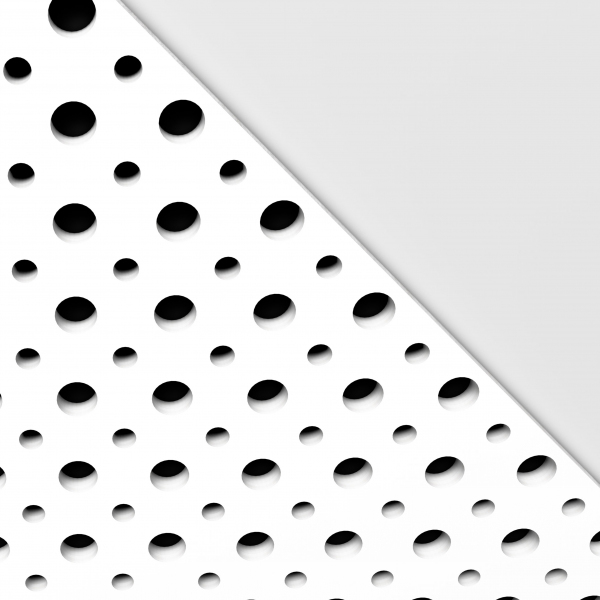

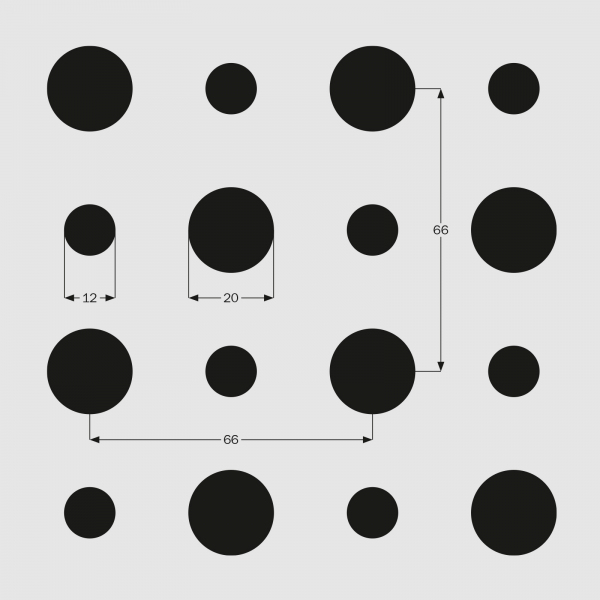

Acoustic design panel 12/20/66 R

Acoustic design panel 12/20/66 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,00 kg/m2
  • Perforated area: 19,6 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

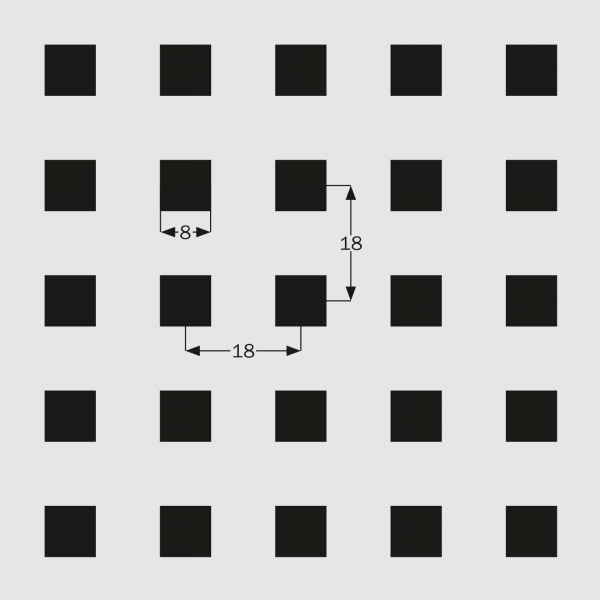

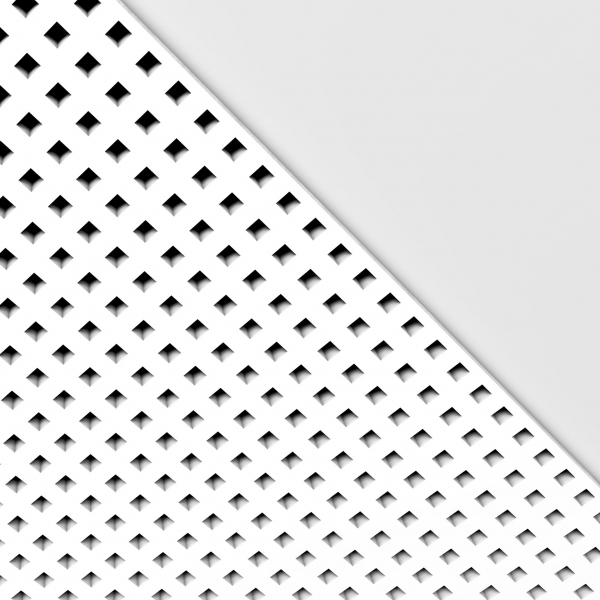

Acoustic design panel 8/18 Q

Acoustic design panel 8/18 Q

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,00 kg/m2
  • Perforated area: 19,8 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

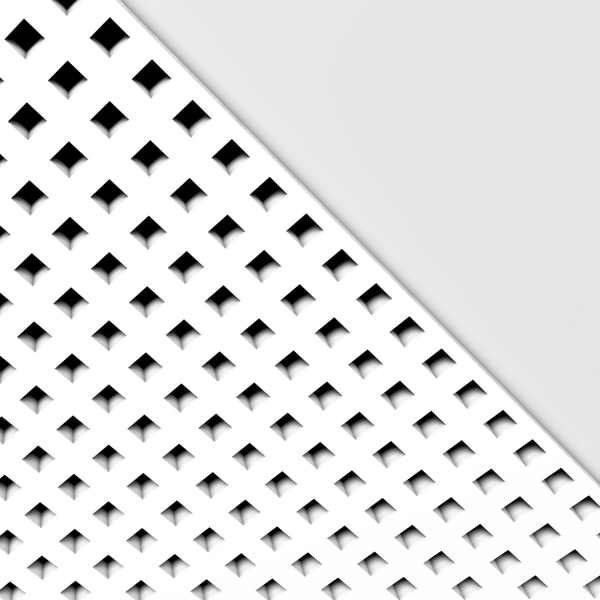

Acoustic design panel 12/25 Q

Acoustic design panel 12/25 Q

  • Panel thickness: 12,5 mm
  • Mass per unit area: 7,70 kg/m2
  • Perforated area: 23,0 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

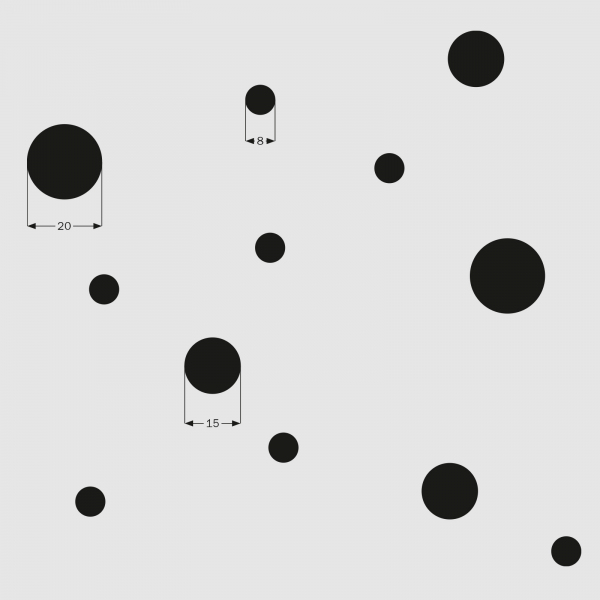

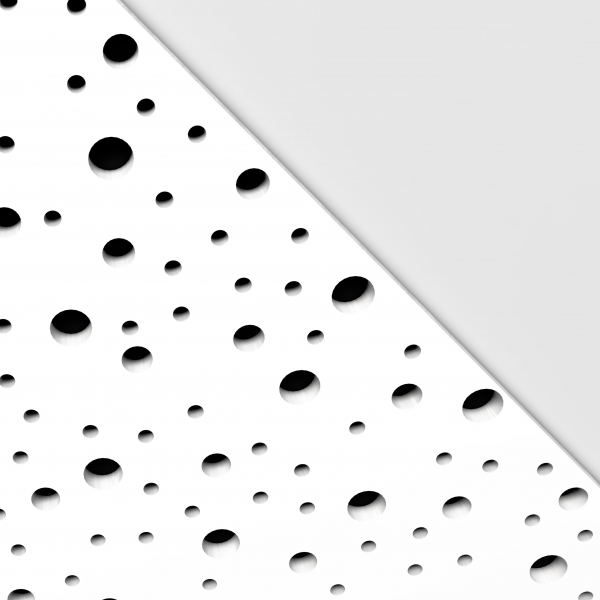

Acoustic design panel 8/15/20 R

Acoustic design panel 8/15/20 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 9,10 kg/m2
  • Perforated area: 9,5 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR

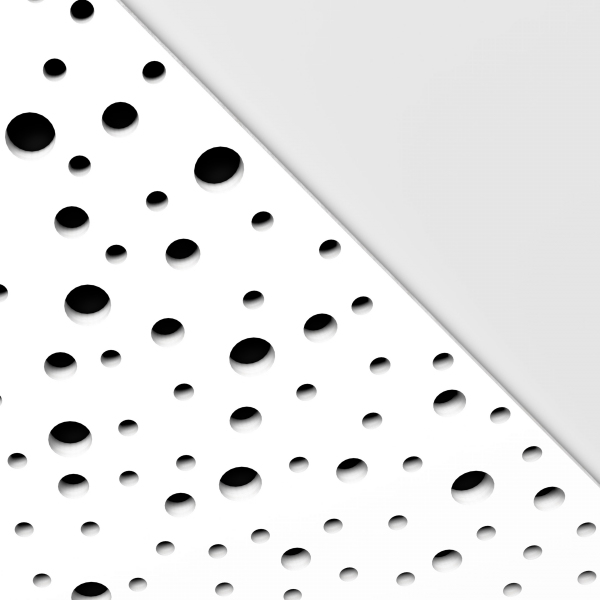

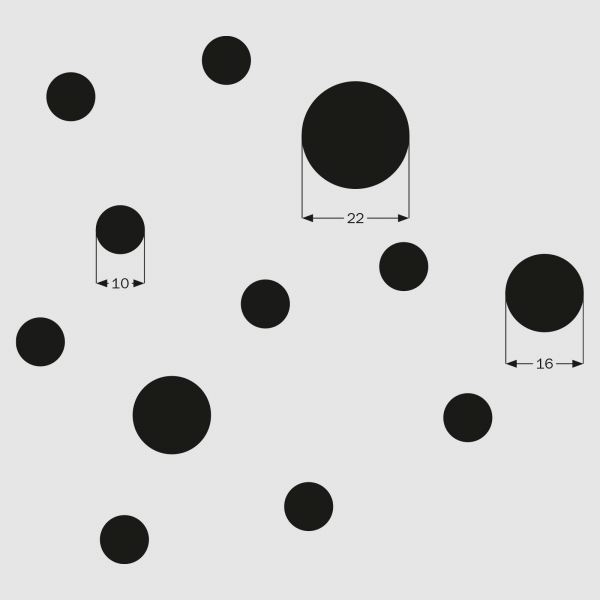

Acoustic design panel 10/16/22 R

Acoustic design panel 10/16/22 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,7 kg/m2
  • Perforated area: 12,6 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN

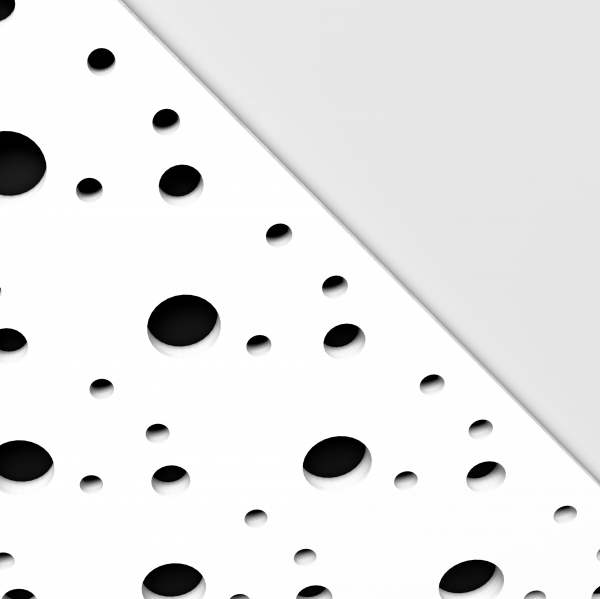

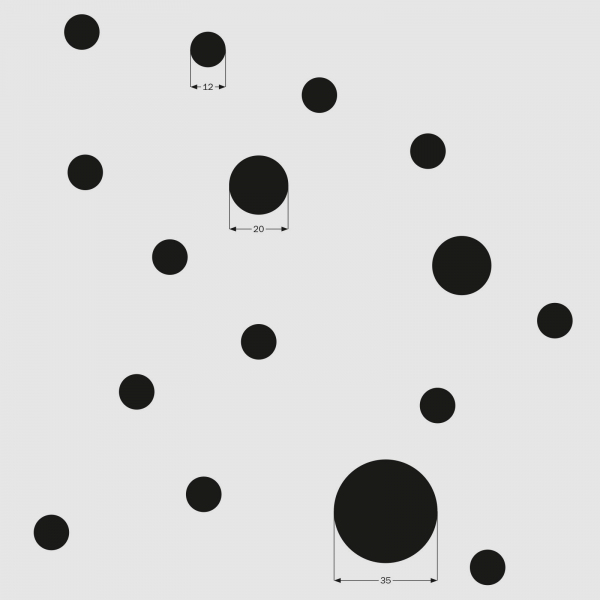

Acoustic design panel 12/20/35 R

Acoustic design panel 12/20/35 R

  • Panel thickness: 12,5 mm
  • Mass per unit area: 8,90 kg/m2
  • Perforated area: 11,0 %
  • Building material class according to DIN 4102: A2, “non-combustible”
  • Fire behavior according to DIN EN 13501: A2-s1, d0

Data sheet on sound absorption

DE
EN
FR
